CROSSED ROLLER

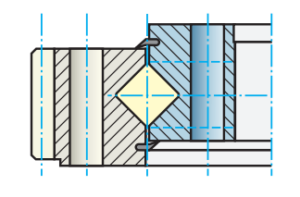

EXTERNAL GEAR

crossed roller slewing bearing（external gear）

HEIGHT	WEIGHT	MOUDLE	NUMBER OF TEETH	EXTERNAL DIAMETER	INTERNAL DIAMETER	BEARING REFERENCE
55	26	4.8	88	403.5	234	06 0307 00
75	60	8	65	535	305	06 0400 00
75	62	5	116	589	383	06 0475 22
85	100	8	80	654	390	06 0508 00
77	85	6	114	700	479	06 0574 09
90	128	6	132	816	573	06 0675 00
85	156	8	108	886	610	06 0734 00
100	176	10	94	979	717	06 0823 18
55	26	4.8	88	403.5	234	06030700
75	60	8	65	535	305	06040000
75	62	5	116	589	383	06047522
85	100	8	80	654	390	06050800
77	85	6	114	700	479	06057409
90	128	6	132	816	573	06067500
85	156	8	108	886	610	06073400
100	176	10	94	979	717	06082318
100	225	10	111	1144	869	06 0980 09
114	327	10	125	1289.5	984	06 1116 00
110	496	10	144	1476	1084	06 1250 21
130	646	10	157	1604	1206	06 1390 03
135	799	16	112	1836	1433	06 1595 04
150	1013	14	142	2027	1615	06 1790 09
140	1228	16	139	2268	1815	06 2002 00
100	225	10	111	1144	869	06098009
114	327	10	125	1289.5	984	06111600
110	496	10	144	1476	1084	06125021
130	646	10	157	1604	1206	06139003
135	799	16	112	1836	1433	06159504
150	1013	14	142	2027	1615	06179009
140	1228	16	139	2268	1815	06200200
144	1547	18	138	2534	2042	06 2242 00
164	1914	18	151	2790	2290	06 2500 01
164	2218	20	152	3116	2600	06 2810 09
144	1547	18	138	2534	2042	06224200
164	1914	18	151	2790	2290	06250001
164	2218	20	152	3116	2600	06281009

EXTERNAL GEAR

crossed roller slewing bearing（external gear）

HEIGHT	EXTERNAL DIAMETER	INTERNAL DIAMETER	BEARING REFERENCE
55	403.5	234	06 0307 00
75	535	305	06 0400 00
75	589	383	06 0475 22
85	654	390	06 0508 00
77	700	479	06 0574 09
90	816	573	06 0675 00
85	886	610	06 0734 00
100	979	717	06 0823 18
55	403.5	234	06030700
75	535	305	06040000
75	589	383	06047522
85	654	390	06050800
77	700	479	06057409
90	816	573	06067500
85	886	610	06073400
100	979	717	06082318
100	1144	869	06 0980 09
114	1289.5	984	06 1116 00
110	1476	1084	06 1250 21
130	1604	1206	06 1390 03
135	1836	1433	06 1595 04
150	2027	1615	06 1790 09
140	2268	1815	06 2002 00
100	1144	869	06098009
114	1289.5	984	06111600
110	1476	1084	06125021
130	1604	1206	06139003
135	1836	1433	06159504
150	2027	1615	06179009
140	2268	1815	06200200
144	2534	2042	06 2242 00
164	2790	2290	06 2500 01
164	3116	2600	06 2810 09
144	2534	2042	06224200
164	2790	2290	06250001
164	3116	2600	06281009

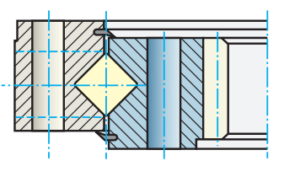

INTERNAL GEAR

crossed roller slewing bearing(internal gear)

HEIGHT	WEIGHT	MOUDLE	NUMBER OF TEETH	EXTERNAL DIAMETER	INTERNAL DIAMETER	BEARING REFERENCE
55	28	5	60	451	291	07 0380 01
60	44	6	66	562	385	07 0489 11
60	61	6	77	665	457	07 0573 00
70	96	6	91	771	541	07 0673 00
70	113	8	80	871	634	07 0770 00
75	144	8	89	960	706	07 0849 00
82	120	8	100	975	784	07 0885 01
55	28	5	60	451	291	07038001
60	44	6	66	562	385	07048911
60	61	6	77	665	457	07057300
70	96	6	91	771	541	07067300
70	113	8	80	871	634	07077000
75	144	8	89	960	706	07084900
82	120	8	100	975	784	07088501
85	190	10	79	1066	785	07 0946 05
90	179	10	98	1175	961	07 1075 01
91	238	10	99	1251	979	07 1140 13
97	323	10	115	1431	1143	07 1304 04
130	541	12	100	1530	1178	07 1385 03
150	802	14	100	1770	1375	07 1606 02
150	951	14	115	2002	1595	07 1830 04
144	1199	16	109	2190	1731	07 1997 01
85	190	10	79	1066	785	07094605
90	179	10	98	1175	961	07107501
91	238	10	99	1251	979	07114013
97	323	10	115	1431	1143	07130404
130	541	12	100	1530	1178	07138503
150	802	14	100	1770	1375	07160602
150	951	14	115	2002	1595	07183004
144	1199	16	109	2190	1731	07199701
160	1626	18	118	2590	2110	07 2400 00
158	2154	20	126	3020	2495	07 2810 09
160	1626	18	118	2590	2110	07240000
158	2154	20	126	3020	2495	07281009

INTERNAL GEAR

crossed roller slewing bearing(internal gear)

HEIGHT	EXTERNAL DIAMETER	INTERNAL DIAMETER	BEARING REFERENCE
55	451	291	07 0380 01
60	562	385	07 0489 11
60	665	457	07 0573 00
70	771	541	07 0673 00
70	871	634	07 0770 00
75	960	706	07 0849 00
82	975	784	07 0885 01
55	451	291	07038001
60	562	385	07048911
60	665	457	07057300
70	771	541	07067300
70	871	634	07077000
75	960	706	07084900
82	975	784	07088501
85	1066	785	07 0946 05
90	1175	961	07 1075 01
91	1251	979	07 1140 13
97	1431	1143	07 1304 04
130	1530	1178	07 1385 03
150	1770	1375	07 1606 02
150	2002	1595	07 1830 04
144	2190	1731	07 1997 01
85	1066	785	07094605
90	1175	961	07107501
91	1251	979	07114013
97	1431	1143	07130404
130	1530	1178	07138503
150	1770	1375	07160602
150	2002	1595	07183004
144	2190	1731	07199701
160	2590	2110	07 2400 00
158	3020	2495	07 2810 09
160	2590	2110	07240000
158	3020	2495	07281009

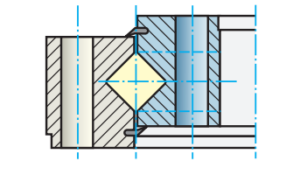

UNGEARED

crossed roller slewing bearing（ungeared）

HEIGHT	WEIGHT	MOUDLE	NUMBER OF TEETH	EXTERNAL DIAMETER	INTERNAL DIAMETER	BEARING REFERENCE
52	16	–	–	300	140	08 0220 05
52	21	–	–	350	190	08 0270 04
55	26	–	–	403.5	234	08 0307 00
60	38	–	–	440	240	08 0340 04
46	25	–	–	474	336	08 0405 05
75	54	–	–	500	305	08 0400 00
75	65	–	–	589	383	08 0475 08
77	90	–	–	700	479	08 0574 08
90	135	–	–	816	573	08 0785 00
100	270	–	–	979	717	08 0823 08
52	16	–	–	300	140	08022005
52	21	–	–	350	190	08027004
55	26	–	–	403.5	234	08030700
60	38	–	–	440	240	08034004
46	25	–	–	474	336	08040505
75	54	–	–	500	305	08040000
75	65	–	–	589	383	08047508
77	90	–	–	700	479	08057408
90	135	–	–	816	573	08078500
100	270	–	–	979	717	08082308
100	248	–	–	1144	869	08 0980 06
100	248	–	–	1144	869	08098006

UNGEARED

crossed roller slewing bearing（ungeared）

HEIGHT	EXTERNAL DIAMETER	INTERNAL DIAMETER	BEARING REFERENCE
52	300	140	08 0220 05
52	350	190	08 0270 04
55	403.5	234	08 0307 00
60	440	240	08 0340 04
46	474	336	08 0405 05
75	500	305	08 0400 00
75	589	383	08 0475 08
77	700	479	08 0574 08
90	816	573	08 0785 00
100	979	717	08 0823 08
52	300	140	08022005
52	350	190	08027004
55	403.5	234	08030700
60	440	240	08034004
46	474	336	08040505
75	500	305	08040000
75	589	383	08047508
77	700	479	08057408
90	816	573	08078500
100	979	717	08082308
100	1144	869	08 0980 06
100	1144	869	08098006
